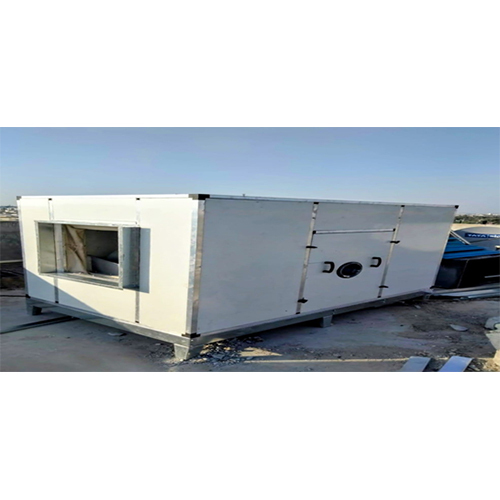

EXHUST - DOUBLE SCREEN AIR WASHER UNIT 25 MM THICK PUF PANEL AIR SUCRBER MACHINE

Name: EXHUST - DOUBLE SCREEN AIR WASHER UNIT 25 MM THICK PUF PANEL AIR SUCRBER MACHINE
Brand: R.B.K AIRCOOLING
Price: 16 INR
Availability: InStock

Price 16 INR/ Square Meter

Get a Price/Quote

MOQ : 1 Piece

EXHUST - DOUBLE SCREEN AIR WASHER UNIT 25 MM THICK PUF PANEL AIR SUCRBER MACHINE Specification

Color
Blue/Grey

Frequency
50 Hz

Control System
PLC/Electronic Panel

Flow Rate
3500-20000 m3/hr

Pressure Range
200-450 Pa

Dust
Coarse, Medium & Fine Particulate Removal

Energy Consumption
Energy Efficient

Application
Industrial Ventilation, Textile, Pharma, HVAC, Factories

Ventilation
High Air Volume Ventilation

Humidity %
Upto 80%

Installation Type
Floor Mounted

Noise Level
<75 dB

Output
Filtered and Cooled Air

Equipment Type
Air Scrubber/Double Screen Air Washer

Hole Size
Customized

Filtration Property
Double Screen Filtration, Airborne Pollutant Capture

Dust %
Upto 95%

Material
25 mm thick PUF insulated panel, Galvanized steel

Connectivity Type
Wired

Filters
Two Stage (Pre & Fine) Screens

Efficiency (%)
93-98%

Maintenance Type
Low Maintenance

Features
PUF Insulated Panel, Corrosion Resistant, Air Washing, Water Spray Nozzle

Automatic Grade
Semi-Automatic

Capacity
4000-20000 CFM

Power
3.5-12 kW

Voltage
415 V, 3 Phase, 50 Hz

Dimension (L*W*H)
As per requirement, Example: 2200 x 1400 x 1800 mm

Weight
370-1350 kg

Fan Type
Centrifugal Blower, Forward Curved

Circulating Water Pump
Centrifugal Type, 1.5-5.5 HP

Nozzle Material
SS304 Stainless Steel

Corrosion Protection
Epoxy Coated Surfaces

Operation Temperature Range
5C-50C

Moisture Carryover
<0.02% at Nominal Flow

Motor Type
TEFC (Totally Enclosed Fan Cooled)

Frame Construction
Aluminium / GI Modular Plenum

Safety
Overload and Single Phasing Protection

Customizable
Yes, As per site requirements

Insulation Density
>40 kg/m3

Suitable For
Indoor/Outdoor Setup

Inlet Type
Double Screen Air Inlet

Air Velocity
3.5-5 m/s

Service Access
Removable Access Panel

Panel Thickness
25 mm PUF insulation core

Environmental Compliance
Meets National Air Quality Standards

Structural Integrity
Shock and Vibration Resistant

Water Tank Material
FRP/SS304

Drainage
Provided with Drain Port

EXHUST - DOUBLE SCREEN AIR WASHER UNIT 25 MM THICK PUF PANEL AIR SUCRBER MACHINE Trade Information

Minimum Order Quantity
1 Piece

Supply Ability
5000 Pieces Per Month

Delivery Time
1 Week

About EXHUST - DOUBLE SCREEN AIR WASHER UNIT 25 MM THICK PUF PANEL AIR SUCRBER MACHINE

Experience stellar air purification with the elite EXHUST Double Screen Air Washer Unit-crafted for distinguished performance in critical environments. Featuring a special 25 mm PUF insulated panel, SS304 nozzles, and an extraordinary centrifugal blower, this air scrubber delivers savings through advanced energy efficiency and exceptional dust removal (up to 95%). With robust corrosion protection and modular construction, it is engineered for reliability across industrial, textile, pharma, and HVAC sectors. Enjoy customizable configurations and low maintenance operation for superior indoor and outdoor air quality.

Wide Application Versatility

The EXHUST Double Screen Air Washer Unit is ideal for use in diverse areas such as textile mills, pharmaceutical plants, industrial factories, and HVAC systems. Its specialized design ensures effective airborne pollutant capture and filtered, cooled air delivery even in challenging surfaces and high-dust environments. Built for floor-mounted installation, this equipment excels in location-specific customization, serving both indoor and outdoor applications, and ensures that every surface area receives uniform and extraordinary air washing.

Key Market Logistics & Offers

EXHUST's Double Screen Air Washer Unit is available across India's main domestic markets, with select samples provided on request to facilitate purchase orders. The machine is supported by robust logistics networks for timely delivery, making it a practical offer for manufacturers, service providers, and suppliers. Additionally, the air washer enjoys a strong presence in main export markets, ensuring global clients benefit from efficient and reliable ventilation solutions with every purchase order processed efficiently.

FAQ's of EXHUST - DOUBLE SCREEN AIR WASHER UNIT 25 MM THICK PUF PANEL AIR SUCRBER MACHINE:

Q: How does the EXHUST Double Screen Air Washer Unit benefit industrial air quality?

A: The unit significantly improves industrial air quality by capturing coarse, medium, and fine particulate matter, delivering up to 95% dust removal and maintaining optimal humidity levels for healthy work environments.

Q: What features make this air washer suitable for harsh industrial environments?

A: Its robust PUF insulated panels, corrosion-resistant construction, and shock-vibration resistant frame make it ideal for both indoor and outdoor industrial setups, handling temperature fluctuations and high-dust workloads efficiently.

Q: Where can I install the EXHUST air washer, and what surfaces are supported?

A: The air washer is floor-mounted and supports a wide range of industrial surfaces, accommodating customizable dimensions according to site requirements for seamless integration in factories, plants, and large commercial buildings.

Q: What is the process for ordering and receiving a sample of the EXHUST unit?

A: Interested clients can request samples from the manufacturer or supplier. After a purchase order is processed and logistics arranged, the sample or full unit is delivered promptly to ensure satisfaction with product performance.

Q: How does the machine ensure energy efficiency and low maintenance?

A: The centrifugal blower, TEFC motor, and advanced control system, combined with double screen filtration and epoxy-coated surfaces, reduce energy consumption and maintenance needs, resulting in long-term operational savings.
